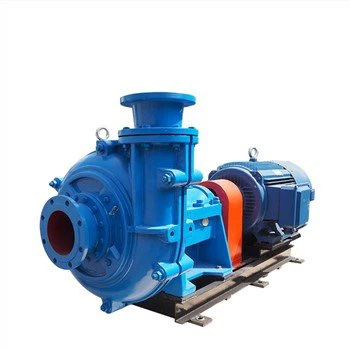

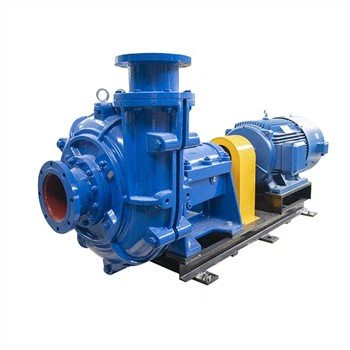

Lárétt miðflótta slurry dæla

Frammistaða

Eiginleikar láréttrar miðflótta slurry dælu

· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throatbush – wear is reduced and maintenance simplified by the use of tapered.

Materials
Hár króm ál: A05, A07, A49, osfrv.
Náttúrulegt gúmmí: R08, R26, R33, R55 osfrv.
Annað efni samkvæmt beiðni, eins og ryðfríu stáli, tvíhliða ryðfríu stáli, nikkelblendi, álfelgur 20 osfrv.

OEM part codes
Hér listum við nokkra OEM hlutakóða til viðmiðunar:
Hjól: 127, 147, 145, osfrv., eins og C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump  code: E4083
6/4 E-A H Slurry Pump  code: E4083
8/6 E-A H Slurry Pump  code: F6083
8/6 F-A H Slurry Pump  code: F6083
10/8 F-A H Slurry Pump  code: F8083
10/8 ST-A H Slurry Pump  code: G8083
12/10 ST-A H Slurry Pump  code: G10083
14/12 ST-A H Slurry Pump  code: G12083
Sandmalardæla úr G Series
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: &1412013
Frame Bearing Assembly types
Tegundir: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF osfrv.
